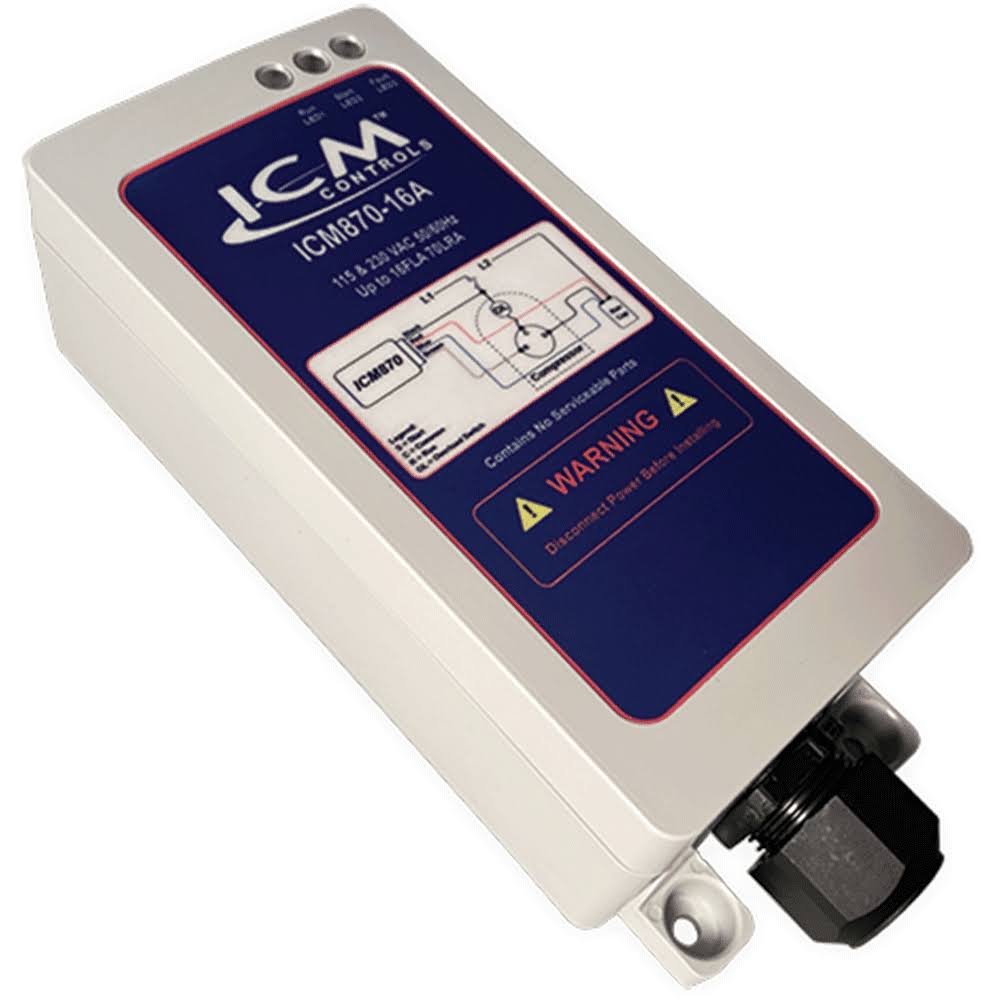

Icm870 Soft Start Series, Built-In Start Capacitor

The ICM870 is intended for marine, recreational vehicle (RV), residential and commercial applications. The ICM870 integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source, such as generator or other. The ICM870 will monitor system health including voltage, current, compressor startup and self integrity. Upon a fault condition, the ICM870 will halt operation and initiate a 3 minute anti-short cycle routine while providing diagnostic fault information by means of an LED indicator. Features Starting current reduction & self-learning algorithm Built-in start capacitor Over/under voltage monitoring Over-current protection Diagnostic indicators Sealed enclosure Weight N/A Inputs L1 & L2 Nominal Voltage 90 VAC min, 264 VAC max Over Voltage Limits 115 VAC nominal = 140 VAC 240 VAC nominal = 250 VAC Under Voltage Limits 115 VAC nominal = 95 VAC 240 VAC nominal = 195 VAC Outputs Compressor Current Maximum Nonimal 22 FLA, 84 LRA Storage Temperature -40°F to 149°F (-40°C to 65°C) Operating Temperature -40°F to 131°F (-40°C to 55°C) Humidity 0-95%, non-condensing Enclosure IP65 Amperage 16 Amps, 9 Amps
